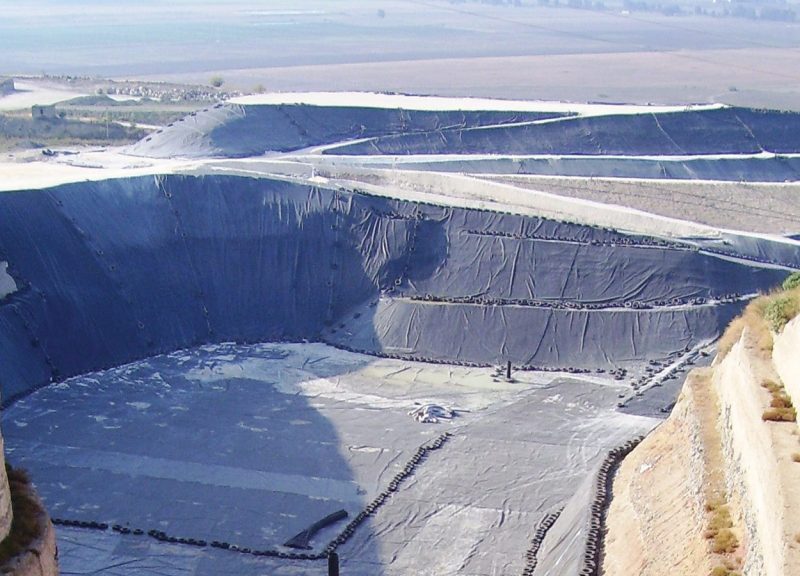

Geocompositi Tenax per il drenaggio vasca discariche
Geocompositi drenanti Tenax per discariche e siti contaminati
Terre rinforzate rinverdite per argini di discariche Sistema tenax Rivel
Geocompositi Tenax per il drenaggio di discariche

Landfills and Contaminated sites

Alternatives to traditional materials for capping and drainage

Drainage geosynthetics can provide an alternative to traditional, granular, natural materials required by current legislation for landfill construction and remediation of contaminated sites. Indeed, Tenax geonets and geocomposites enable the drainage of meteoric water, leachate and biogas in cover systems (“capping”), bottom and side slopes.

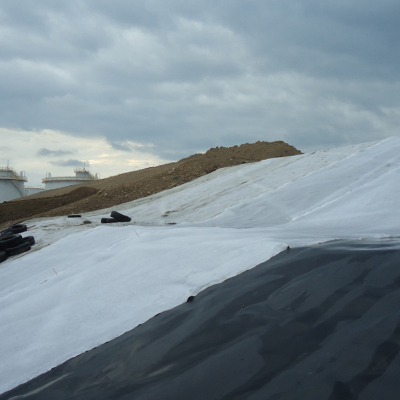

Capping

Tenax offers a series of traditional and innovative drainage geocomposites. The high-performing Tenax HD and Tenax HF geocomposites are used when high flow rates are required or when the interface friction angle needs to be higher than traditional products.

For very long slopes, an element that increases the friction between the cover soil and the waterproofing/drainage system is needed. Tenax MULTIMAT R reinforced geomats enable the soil to “grip” preventing it from slipping because of its weight.

Capping discariche con geocompositi e geostuoie Tenax

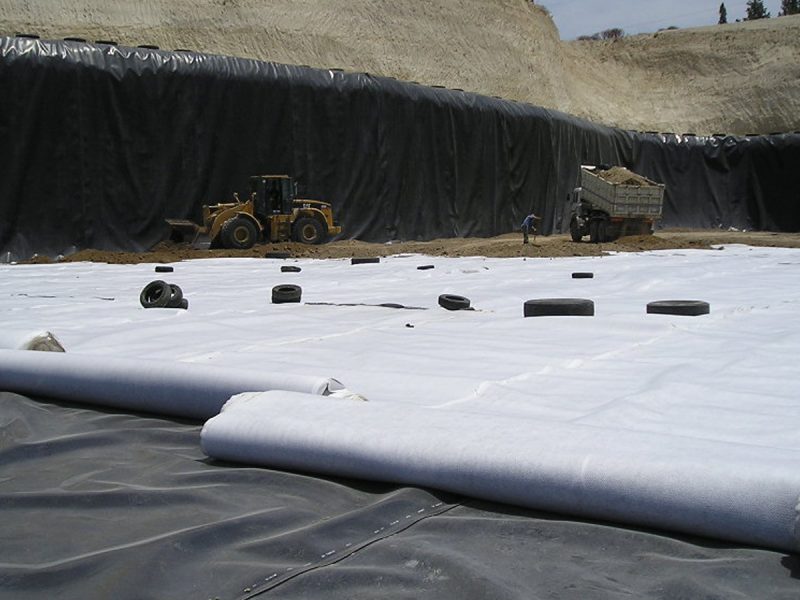

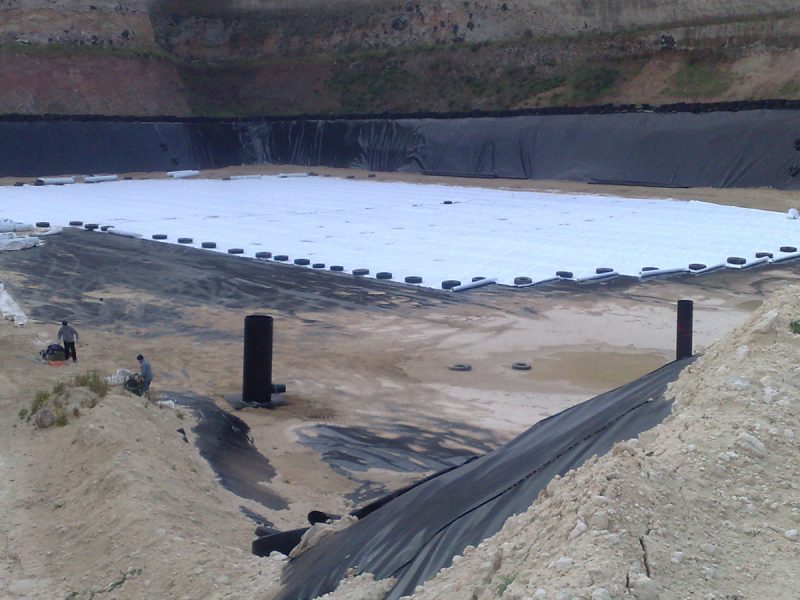

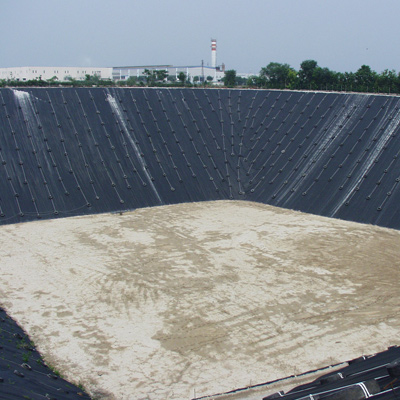

Bottom drainage

The bottom and the side slopes are subject to the weight of waste, therefore it is fundamental that the drainage materials provide high compressive strength in order to ensure the design flow rate. Tenax TENDRAIN triplanar geocomposites, thanks to their structure with three overlapping and intersecting strands, are specifically designed to drain the leachate even when the waste load is considerable.

Drenaggio pareti e vasca con geocompositi drenanti Tenax

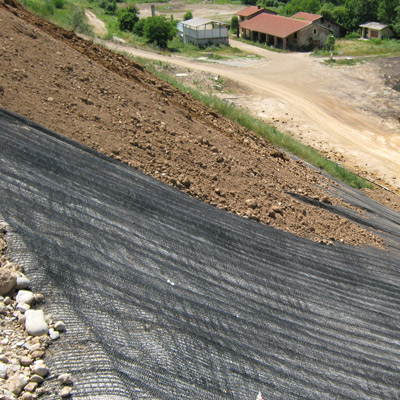

Erosion control

Before a complete revegetation, a landfill covering is subject to run-off and surface erosion phenomena which create ruts and canals that impede the growth of vegetation. Tenax Multimat and Tenax Multimat P geomats perform an important task of erosion control, so vegetation can grow quickly and uniformly.

Controllo dell'erosione capping discariche con geostuoie Tenax

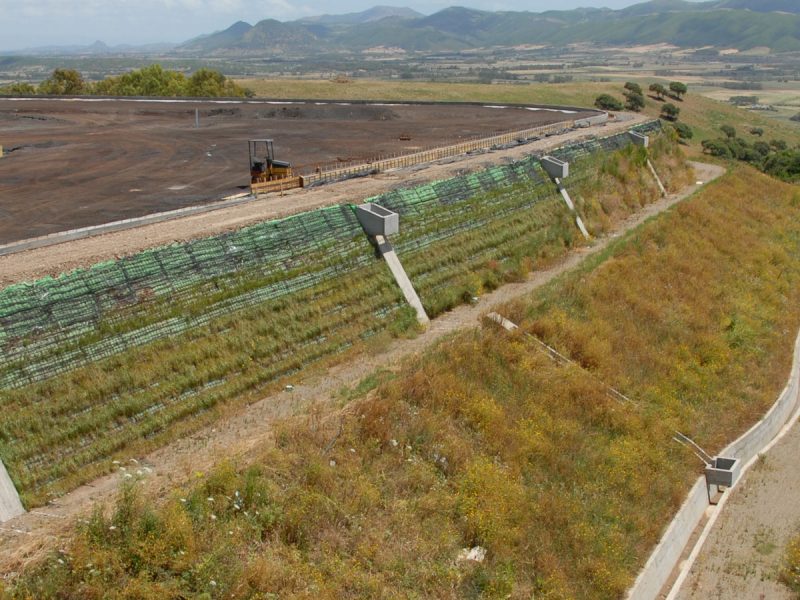

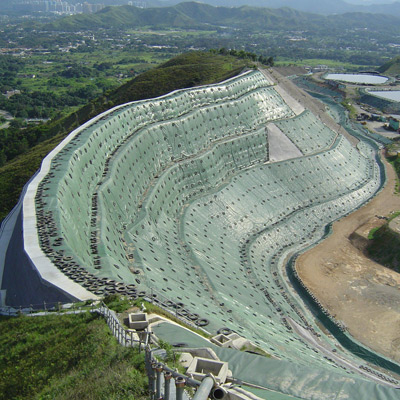

Containment embankments

To increase a landfill capacity, and thus the return on investment, it is necessary to build superimposed embankments with a limited section. The Tenax RIVEL reinforced soil system ensures embankment stability, enables revegetation and therefore does not impact on the landscape.

Argini discariche con terre rinforzate Sistema Tenax Rivel
Technical Competence Center

Technical Competence Center

Specialized technical support for Designers and Contractors

Discover more
